Kit no: BSR3094
OEM no: MCK1294
Name: MERITOR
Application: DX 195, DX 225

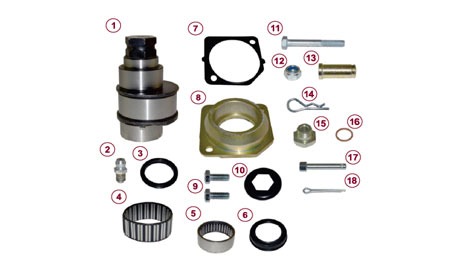

Description: Caliper Shaft Repair Kit
1 - Shaft
2 - Grease Nipple
3 - Seal Ø35x44x7 mm
4 - Roller Bearing
5 - Roller Bearing Ø52 / Ø46 x 20 mm
6 - Seal
7 - Gasket
8 - Cover
9 - Screw M8X20mm
10 - Dust Cover
11 - Screw M8X60mm
12 - Bolt Nut M8
13 - Detent Pin
14 - Cotter Pin
15 - Plug Bolt
16 - Washer Ø19 / Ø13 mm
17 - Detent Pin
18 - Cotter Pin
