Kit no: BSR2058
OEM no: 12999678 - 5021 170 488 - 865966 - M1000675 - 08565966 - 12.999.677
Name: WABCO
Application: PAN 19-2 / 22-2 Type
Description: Caliper Repair Kit (Double Piston)

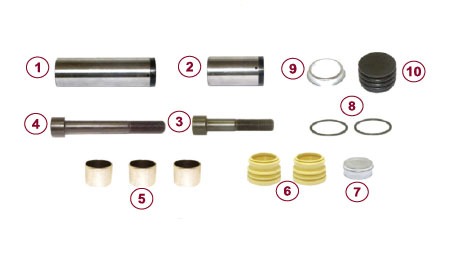

1 - Guide Pin (Long) Ø38 x 128 mm
2 - Guide Pin (Short) Ø38 x 70 mm
3 - Bolt (Short) M16x1,5x80 mm.
4 - Bolt (Long) M16x1,5x130 mm
5 - Guide Pin Bush 42 x 38 x 30 mm
6 - Guide Pin Gaiter
7 - Steel Cap Ø42,5 x 17 mm
8 - Ring Ø44,5 x 1,25 mm
9 - Steel Cap Ø51,5 x 11,50 mm
10 - Outer Boot
Name: WABCO
Application: PAN 19-2 / 22-2 Type
Description: Caliper Repair Kit (Double Piston)
1 - Guide Pin (Long) Ø38 x 128 mm
2 - Guide Pin (Short) Ø38 x 70 mm
3 - Bolt (Short) M16x1,5x80 mm.
4 - Bolt (Long) M16x1,5x130 mm
5 - Guide Pin Bush 42 x 38 x 30 mm
6 - Guide Pin Gaiter
7 - Steel Cap Ø42,5 x 17 mm
8 - Ring Ø44,5 x 1,25 mm
9 - Steel Cap Ø51,5 x 11,50 mm
10 - Outer Boot
